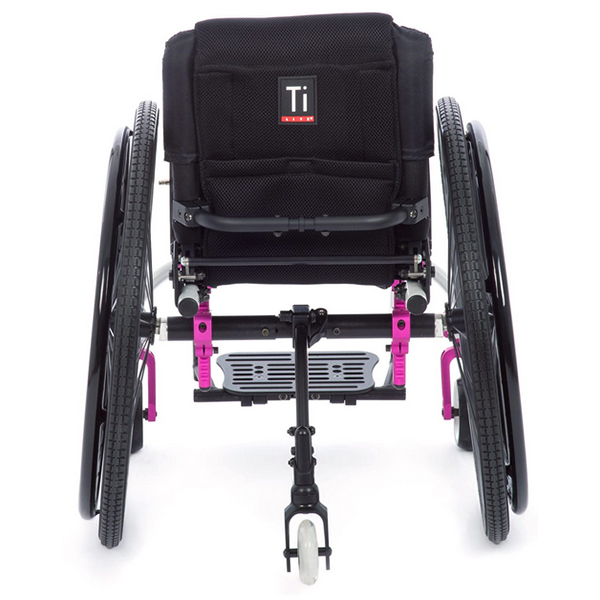

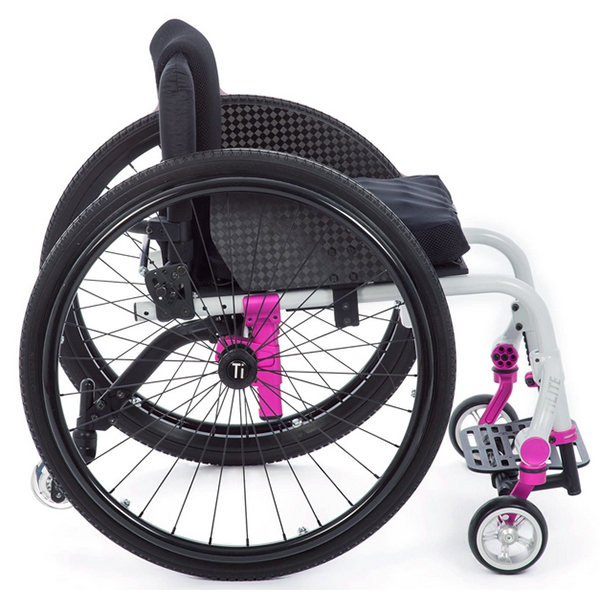

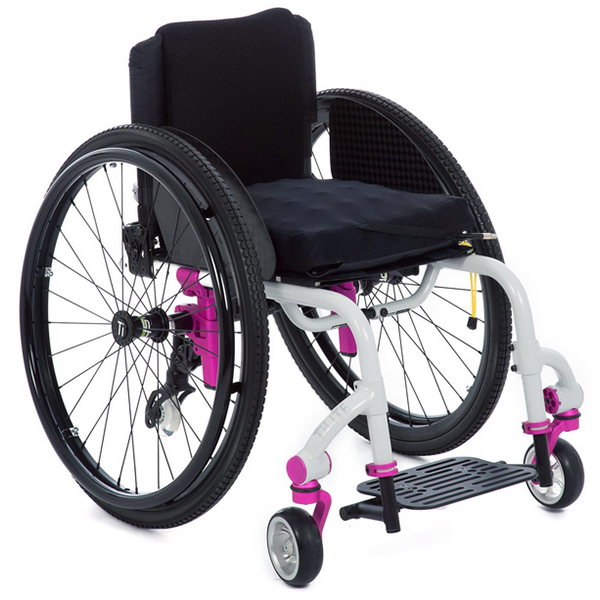

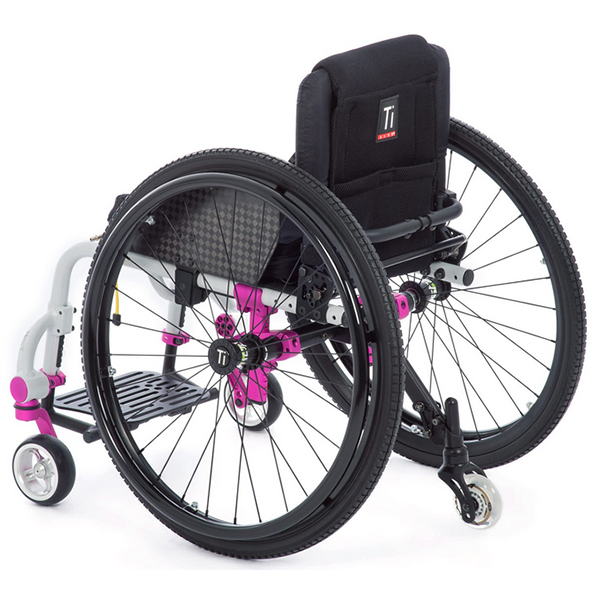

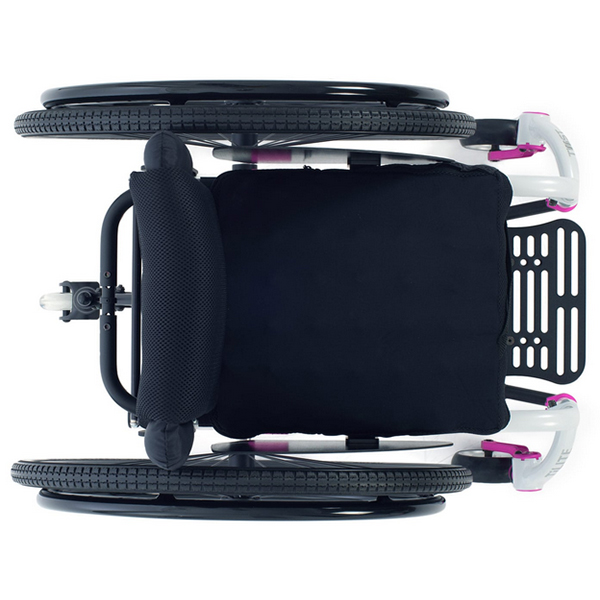

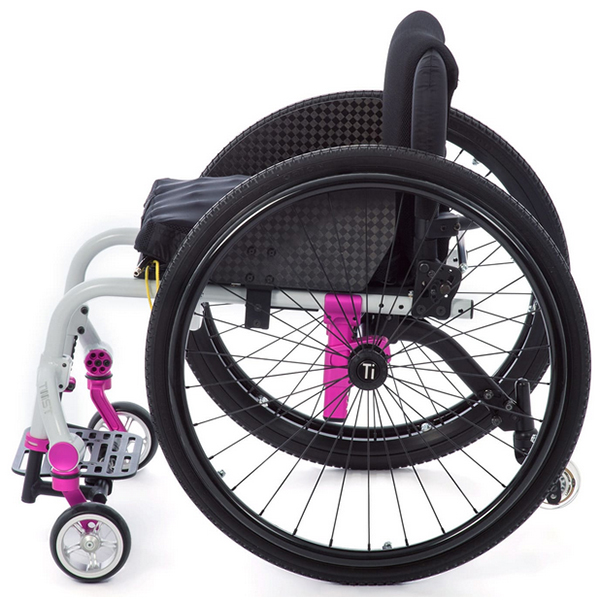

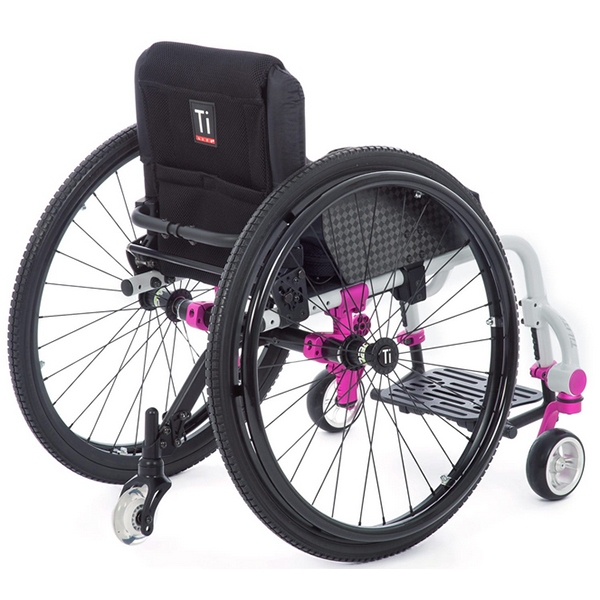

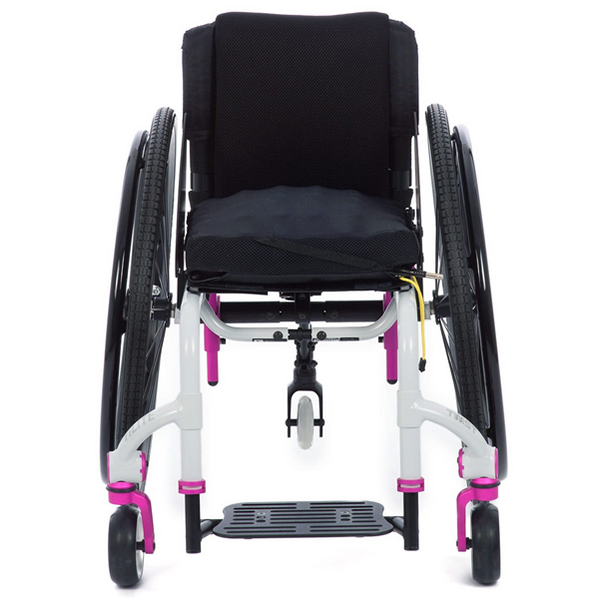

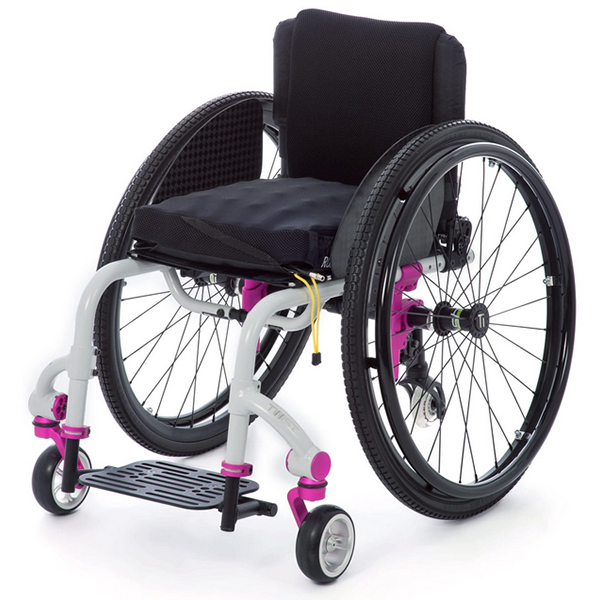

TiLite Twist Growable Youth Wheelchair

TWTTDO ❑ Transit Tie-Down Option – Consists of four factory-installed Transit Tie-Down Brackets and Reinforced Frame. Occupied Transit Use. (165 Pound Weight Limit.)

THIS SECTION MUST BE READ. The TiLite Twist with Transit Tie-Down Option (TWTTDO) was crash-tested in accordance with ISO 7176-19 Frontal Impact
Test requirements for wheelchairs with 130 lb. (59 kg) crash dummy, which corresponds to a person with a weight of 125-165 pounds (57-75 kg), utilizing vehicleanchored
pelvic and shoulder belts. The crash-tested chair was configured as follows: 15” Seat Width, 16” Seat Depth, 90° Front angle, 15.5” Angle Adjustable
Footrest, 16.5” – 20.5” Folding Aluminum Adjustable Height Backrest set at 20.5” and 101°, Tension Adjustable by Straps Back Upholstery, Bolt-On Seat Sling
Upholstery and no armrests. While the Transit Tie-Down Option is compatible with, and can be purchased with, additional seat sizes, optional components,
and varied configurations, and provides designated secured points, TiLite makes no claim that any other components or configuration have been tested beyond
the above-described ISO 7176-19-conforming configuration. Please refer to the TILite Transit Tie-Down Option Owner’s Manual Supplement for additional
information and warnings. The U.S. Department of Transportation has not approved any tie-down system for transportation of a user while in a wheelchair in a
moving vehicle of any type. It is TiLite’s position that users of wheelchairs should be transferred into appropriate seating in motor vehicles and use the restraints
made available by the auto industry. TiLite does not claim that its Transit Tie-Down Option will prevent injury or death in the event of a motor vehicle accident.

Seat Width (A):

Measure from outside of seat tube at back post to the outside of the opposite seat tube at back post. Seat Width grows 2”. All upholstery (except cushion) and components (except TiShaft Back Release Bar available at no charge upon request) needed to grow the Twist seat width are included.

Seat Depth (B):

Measure from front of back post to the front edge of seat sling. Front edge of seat sling will be 1.5” from the beginning of the bend on No Taper and Tapered Frames, and 2” from the beginning of the bend on Abduction Frames. All Upholstery (except cushion) and components needed to grow the Twist seat depth are included. Seat Depth grows 3”.

Front Seat Height (C):

Measure from floor to front of seat sling. Twist adjusts up and down in 1/2” increments. (2” Taper available with 12” – 15” or 13” – 16” Seat Depths B only. Add 1.5” to minimum Front Seat Height C Ranges with 2” Taper.)

Rear Seat Height (D):

Measure from floor to top of seat tube at Back Post. Twist adjusts up and down in 1/2” increments.

Front Angle (L):

Measure from frame front to floor.

Seat to Footrest (E):

Measure from front edge of seat sling to top rear of footrest. Measurement must be at least 2” shorter than Front Seat Height (C).

Footrest Type:

• TWFTR24 – Flip-Back Depth & Angle Adj. Footrest (n/a when both 13″ – 15″ Seat Widths A & Abduction Frame/2″ Outward Flare are ordered)
• Flip-Back Depth & Angle Adj. High Mount Footrest (n/a when both 13″ – 15″ Seat Width A & Abduction Frame/2″ Outward Flare are ordered)

Footrest Width (I):

Measure from inside of front frame tube to inside of opposite front frame tube.

Seat Back Height (F):

Measure from top of back post to top of seat tube at rear of frame. (Short Seat Back Height (F) n/a w/Flip Back Tubular Armrests. Tall Seat Back Height (F) n/a w/Seat Widths (A) of 11”-13” or smaller.)

Seat Back Angle (G):

Measure angle from front of back post to floor. 90° will be perpendicular to the floor. To approximate the angle from the back post to the seat, subtract 2 degrees from measurement (G) for every 1/2” of dump.

Rear Wheel Spacing (J):

Measure from outside of seat back post to inside of rear tire. 3/4” Rear Wheel Spacing not available with 0° or 2° Camber (K).
