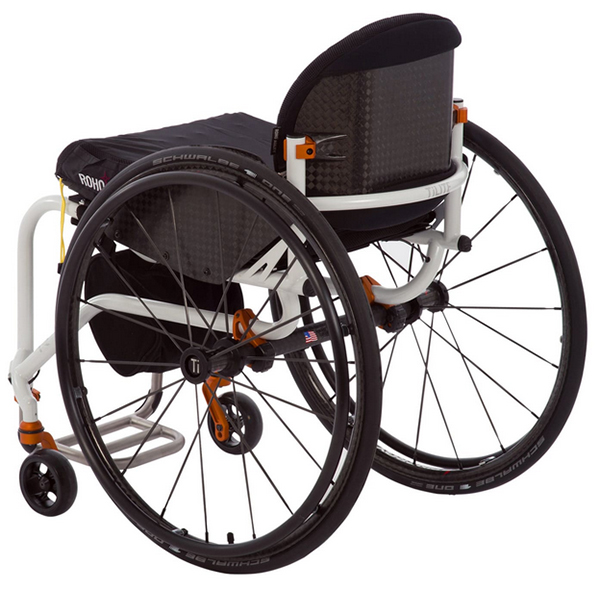

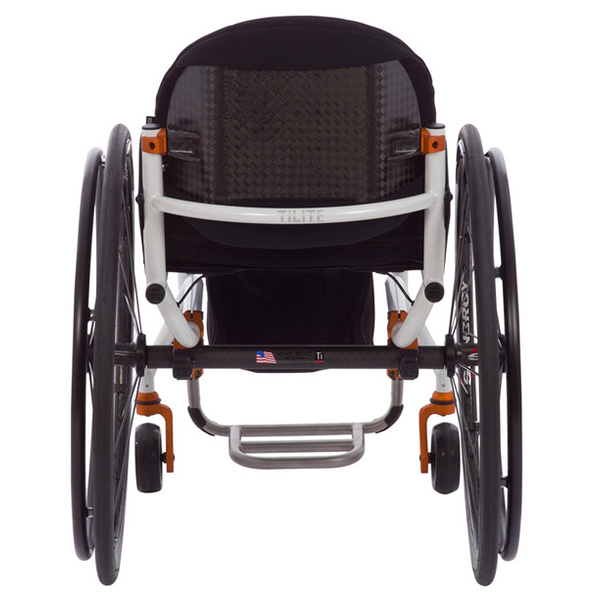

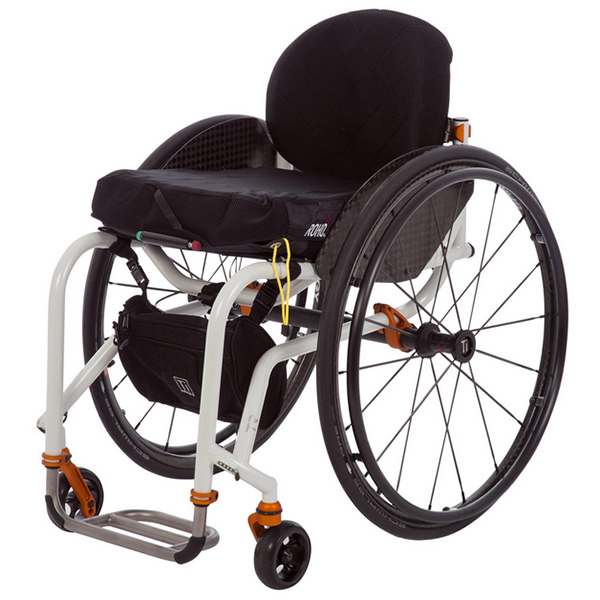

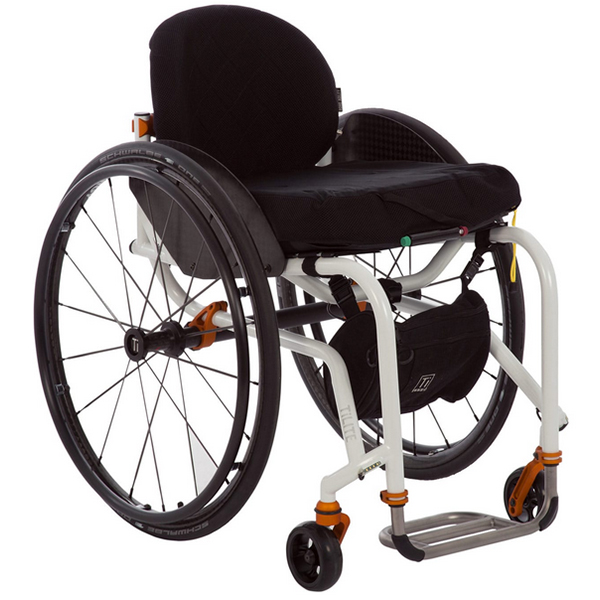

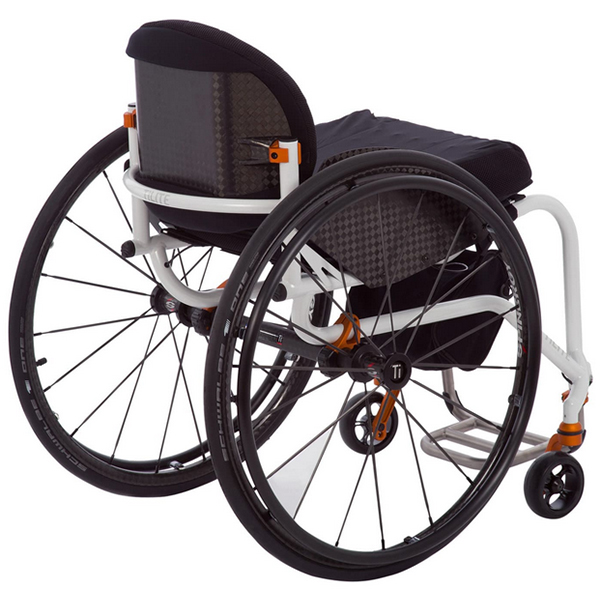

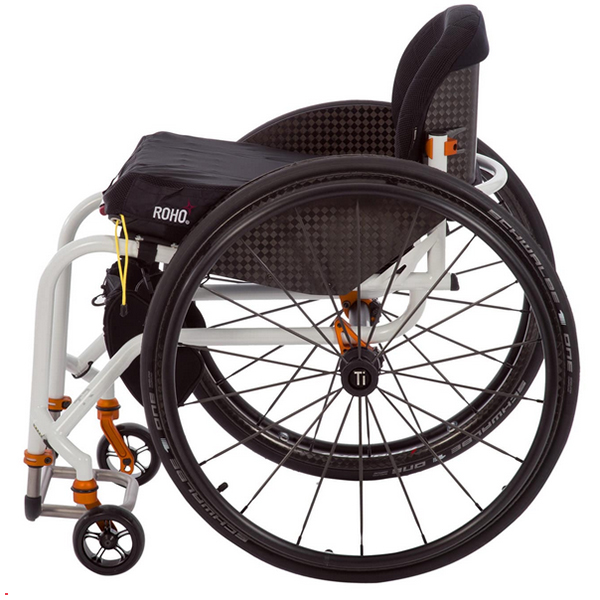

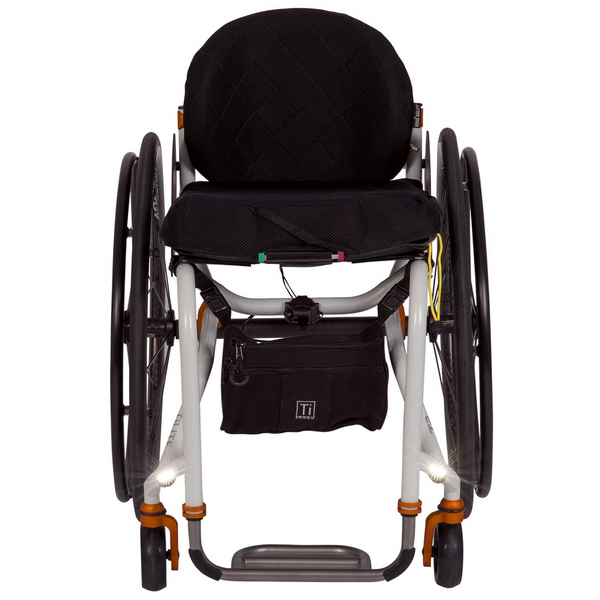

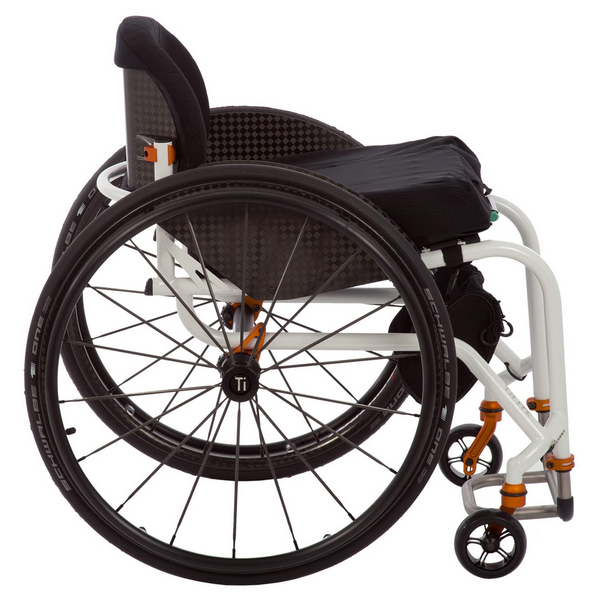

TiLite TR Rigid Titanium Wheelchair

TR Frame Options:

Heavy Duty – 350lb weight limit. No charge when 20” rear seat width and 20” seat depth are selected. Includes billet
aluminum front wheels. Requires tension adjustable by straps back upholstery, Shadow, Spinergy SPOX or LX rear wheels. Only available
with 0° or 2° camber. Not available with Slipstream or Glide forks, carbon fiber camber tube or velcro adjustable upholstery.

LiquidBloom

Rebel Vector
v

Seat Width (A):

Measure from outside of seat tube at back post to the outside of the opposite seat tube at back post.

Front Seat Width:

Measure from inside of front frame tube to inside of opposite front frame tube. (Required with V-Front End V. Not Available with Standard Front End I.)

Seat Depth (B):

Measure from front of back post to the front edge of seat sling. Front edge of seat sling will be at the beginning of the bend at front of chair frame, unless Frog Legs or a 90º Front Angle is ordered, in which case front edge of seat sling begins approximately 1” behind the bend.

Ergonomic Seat (U):

Measure from front of back post to beginning of upward bend of seat tube.

Front Seat Height (C):

Measure from floor to top of seat tube at the beginning of the bend.

Rear Seat Height (D):

Measure from the floor to top of seat tube at the back post.

Front Frame Angle (L):

Front Frame Angle (L) Measure from frame front to floor.

TFA2 – Overall Frame Length (M) Measure from front of backrest to Front Edge of Footrest.

Front End Type/Footrest Width:

Select standard front end ‘I’ if no seat taper ‘T’ has been selected. Select V-front end ‘V’ if a seat taper ‘T’ has been selected.

TFE1 – No V-Front Taper ‘I’ – Find your rear seat width ‘A’ in the chart below and select one of the options to the right. Measure from inside of front
frame tube to inside of opposite front frame tube.

TFE2 V-Front Taper ‘V’ – Measure from inside of front frame tube to inside of opposite front frame tube 2.5” above footrest. Titanium footrests
have 1” of adjustment up and down. Not with ergonomic seat frames.
9” 10” 11” 12” 13” 14” 15”

CMD008 – Custom Abducted Front Frame Width – Adapted footrest and/or front seat width. Please specify desired front seat width and desired
footrest width to the nearest 0.5” in the Notes section. Some limitations may apply.

Seat to Footrest (E):

Measure from front edge of seat sling to top rear of footrest. Measurement must be at least 2” shorter than Front Seat Height (C)

Back Options:

TSB11 –  Backrest Locks When Folded. Available on all backs. Not available with ergonomic seat.
TSB12 – 4” Deep Backrest Rigidizer Bar. Not a rounded style Rigidizer bar. Not available with non-folding, fixed height titanium back type.
TSB3 – TiShaft Back Release Bar, Aluminum. Not available with non-folding fixed height titanium back.
TSB5 – TiShaft Back Release Bar, 2×2 Twill Weave Carbon Fiber. Not available with non-folding fixed height titanium back.

Seat Back Height (F):

Measure from top of back post to top of seat tube at rear of frame.

Fixed Back Height (F):

Required for fixed side guards. Not with swing-away tubular or swing-away flip-back tubular armrests, integrated push handles, integrated fold-down push handles or bolt-on height adjustable push handles.

Seat Back Angle (G):

Measure angle from front of back post to floor. 90° will be perpendicular to the floor. To approximate the angle from the back post to the seat, subtract 2 degrees from measurement (G) for every .5″ of dump.

Center of Gravity (H):

Measure from front of back post at the seat tube to the center of the rear axle. If no center of gravity is selected, chair will ship with the center of gravity in the rearward-most position.

The rear frame for a TR will be square when the Center of Gravity H measurement is less than 3.5”. TRA will always be a Rounded Rear Frame.

Camber (K):

Rear Wheel Spacing (J):

Measure from outside of back post to inside of rear tire. TRA 0.75” rear wheel spacing not with 0° or 2° camber.

Seat Upholstery:

CMD018 – Custom iSleeve  – Please provide sleeve width and depth (inches) in Notes section at the end of this order form. Add 1” to
device depth and 0.25” to width. Best when used with tension adjustable bolt-on upholstery. Some limitations may apply.

Rear Wheel Type:

(See rear seat height ranges chart for rear seat height ‘D’ limitations.)

XOAD1 – One Arm Drive System – Available with 24” mag wheels and standard aluminum handrim only. Rear seat height, camber or
axle restrictions may apply. Install on Left or Right.

XRW14 – TiLite SHADOW Rear Wheel – Select size. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)

XRW7 – Spinergy SPOX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Green

XRW8 – Spinergy LX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth. Only available with heavy
duty frame when 0° or 2° camber is selected.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Orange Pink Purple Green

ZRW9 –  Spinergy – Design Lab LX Rear Wheel Black spokes only. Select size and anodizing color. 25” and 26” wheels require 15” minimum seat
depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Gold Green Blue Red Purple Orange

XRW16 – Spinergy Carbon Blade Rear Wheel – Select size. Not available with heavy duty frame. 25” wheels require 15” minimum seat depth.

-24” (540) 25” (559)

XRW17 – X-Core Mag (Not available with Heavy Duty Frame, Short Tabs, Quad Release Axles or Spoke Guards. Available with Aluminum Sliver Anodized Handrims only.)

-22”(501) 24”(540)

Armrest:

TARM1 – Swing Away Tubular Armrests – Select range. Not available with non-folding fixed height titanium back or height adjustable
push handles.
6.5”-9.5” or 9.5”-12.5”

TARM4 – Swing Away Flip Back Tubular Armrests – 8.5”-11.5” – Not available with non-folding fixed height titanium back.
TARM2 – Removable Height Adjustable Desk Arm with Rigid Side Guard – Select range and pad size. Requires 14” minimum seat
depth. Not available with ergonomic seat.

9”-12” or 12”-15”
Desk Length (10”) Full Length (14”)

TARM3 – Removable Height Adjustable Desk Arm with Rigid Side Guard and Transfer Loop – Select range and pad size. Requires
15” minimum seat depth. Not available with ergonomic seat.

9”-12” or 12”-15”
Desk Length (10”) Full Length (14”)

TARM5 – Armrests Covered in Black Ultrasuede – Not available with desk arms.
