Invacare Top End Eliminator OSR - U Cage Racing Wheelchair

Invacare Top End Eliminator OSR - U Cage Racing Wheelchair
(2 reviews)

Price is not the only factor to consider when buying the Invacare Top End Eliminator OSR U-Cage, the fast delivery from Sportaid is a crowd pleaser!


The Invacare® Top End® Eliminator™ OSR Racing Wheelchair with the U Cage design is for athletes who use the kneeling position or need an amputee seat. Athletes who are considering the U Cage style typically have advanced experience and are ready to race in a chair designed specifically for the kneeling position. Athletes will need good balance and transfer skills and typically have an lower limb amputation(s) and/or have a spinal cord injury presenting at a T-10 injury level or below. U Cage includes an aluminum knee plate for extra rigidity. The Invacare Top End Eliminator OSR U-Cage is the perfect racing wheelchair for competitors who really intend to finish first.

Great athletes prefer the Invacare Top End Eliminator OSR U-Cage. Just ask Ernst Van Dyk, Boston Marathon champion, past champion Franz Nietlispach and many other top-rated wheelchair athletes like Krige Schabort, Kurt Fearnley, Aaron Gordian, Edith Hunkeler, Chantal Petitclerc, Diane Roy, plus Adam Bleakney and his illustrious U of I Wheelchair Road Racing and Track Team.

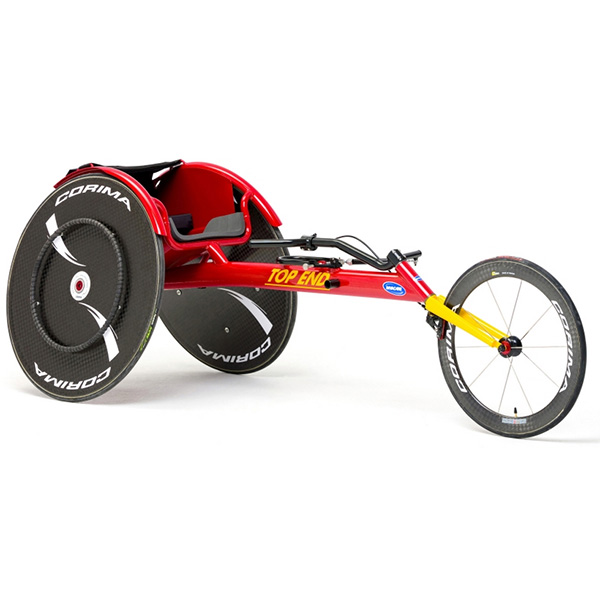

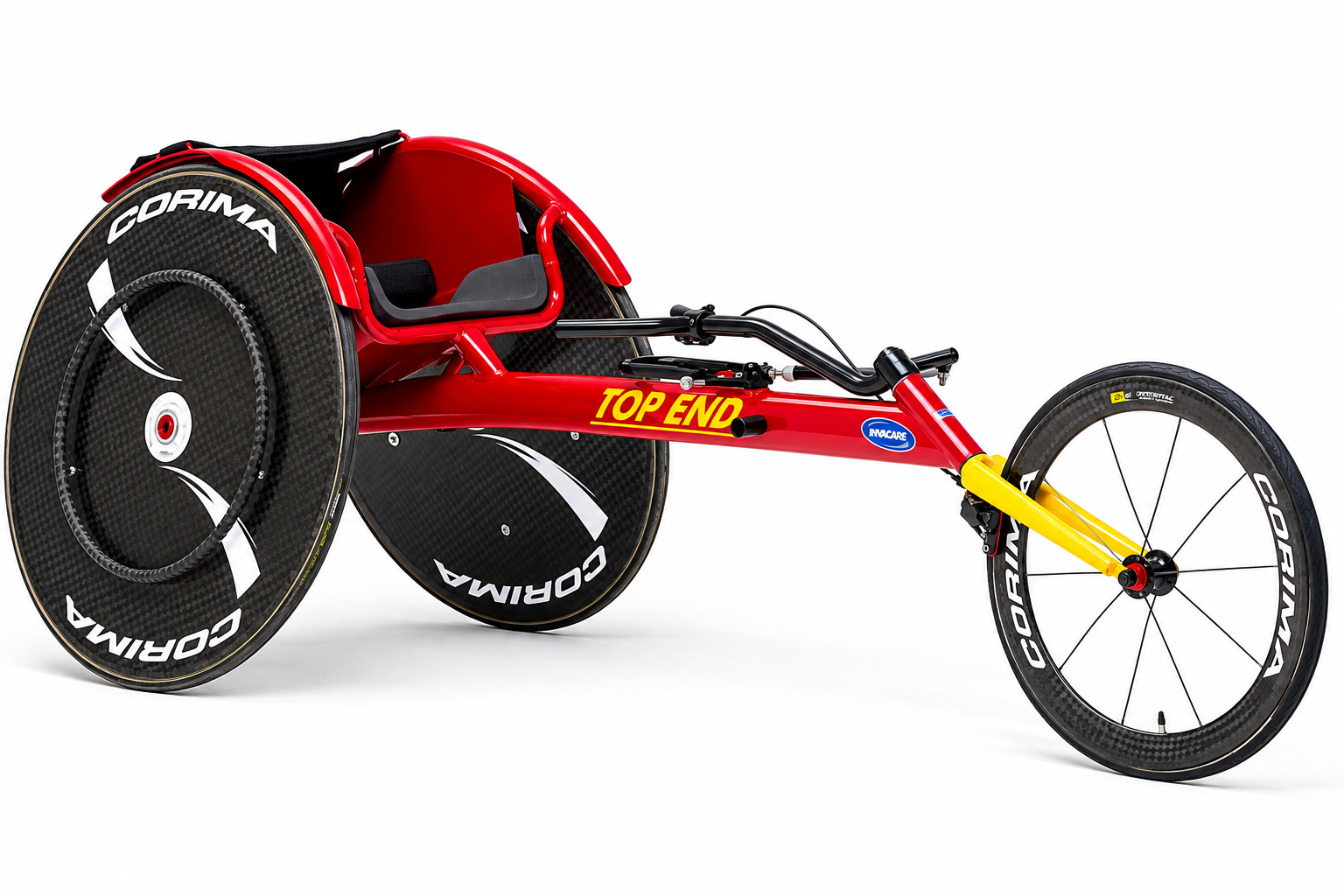

Pictured with Optional Corima Wheels and two tone paint.



  • Custom 6061 T6 aluminum frame
  • Aluminum side panels, straight axle tube with rear wheel alignment, aluminum fork and Aero bars equipped with caliper hand brake
  • Integral wrap-around fenders
  • Kneeling, amputee or traditional adjustable upholstery, 700C high performance clincher or tubular wheels/tires with 1/2" threaded axles
  • Precision track compensator system, 20 inch front wheel with tubular tire, tire coated aluminum pushrims. See order form for options
  • Weight Capacity: 250 lb. / approx. 113 kg.

When ordered without wheels, tires, pushrims, and axles, retail starts at $3725.00

*** Top End charges a 10% surcharge on all of their products, which will be added to the total of your order after checkout. ***
Product details
Click here to be notified of price drops of this item
Top End Surcharge (Must Read Learn More)
Learn more
Frame/Cage Style
Learn more
Learn more
Seat Type
Learn more
Camber Tube
Learn more
Knee Width
Learn more
Upper Frame Width
Learn more
Lower Frame Width
Learn more
Axle Position
Learn more
Knee Depth
Learn more
Rear Seat Height
Learn more
Overall Length
Learn more
Knee Height
Learn more
Steering Handle
Learn more
Track Control
Learn more
Track Control Mount
Learn more
Camber Angle
Learn more
Front Wheel
Rear Wheels
Learn more
Front Wheel Tire
Rear Wheel Tires
Learn more
Pushrim Style
Rubber Coated Pushrim Size
Learn more
Upholstery Material and Color
Seat Style
Back Upholstery
Safety Options
25015 - Safety Light, Front (White)( +$16.38)
25016 - Safety Light, Rear (Red)( +$16.38)
25073 - Safety Flag( +$54.60)
Positioning Options
25001 - Click Strap set, 8" Small( +$81.90)
25002 - Click Strap set, 10" Medium( +$88.27)
25003 - Click Strap set, 12" Large( +$99.19)
Performance Enhancement Options
25024 - Cordless Computer( +$109.20)
Training Options
25076 - Garmin Computer/Hear Rate Monitor( +$547.82)
Frame Color (see Accesories Studio below)
Alternative Fork Color (see Accessories Studio below)

Click here to subscribe for 'Back-in-stock' notifications
Click here to be notified when this item is nearly out of stock
: *
: *
: *
8" x 1 - 1/4" Grey Tires
Primo Passage Wheelchair Tires 25 x 1 (25-559) pair
Sportaid Full Finger Leather Handball Gloves
Curity Bedside Drainage Bags
Medipore Soft Cloth Surgical Tape (2, 3, 4" wide)
Posey Sheath Holders
Surgilube Lubricant Foil Packs
PVI Bariatric Multifold Ramps 5 - 8-ft x 36-in Wide
Quickie/Jay Odds and Ends
Average customer rating:
(2 reviews)

2 Most useful customer reviews (see all reviews):
Mar 11, 2017
This customer purchased the item at our site.
All-round great chair, most recommended.
Loading...Was the above review useful to you? Yes (0) / No (0)
Mike Durant
Great racing chair, light and easy to steer. It is my first racing chair and I am very happy with the transfers and comfort of the chair.
Loading...Was the above review useful to you? Yes (0) / No (0)

Frame: Custom racing frame available in 2 frame choices: standard or kneel only. The Eliminator OSR is custom built to make the most of each athletes ability.
Frame Tubing: Frame is built of 6061 T6 oval aluminum tubing with rolled aluminum integral wrap-around fenders and full aluminum side panels. There are 4 different cage styles to maximize each athlete's style.
Seat Width: Upper inside frame width and lower inside frame width are needed to ensure a proper fit. Please refer to the measuring guidelines on the back of the order form or the racing CD for clarification.
Camber Angle: Axle position is typically between 5"-8". Camber of 11, 12, 13, and 15 degrees are available.
Seat Height: Rear seat height offered 15" 16", 17" or 18" from the floor. Front seat height is typically 1" higher on the standard OSR and on the kneel-only OSR seat angle is used instead to determine the front measurement. See the order form for more details.
Wheels: 700C or 26" rear clincher or tubular 28 spoke high performance wheels with threaded axles. Tire coated aluminum pushrims are standard. Composite wheels are available as an upgrade. Front wheel is 20" tubular.
Overall Length: 64" to 78". The aero steering bars are adjustable so that the user can easily reach the caliper brake.
Product Weight Capacity: 250 pounds.
Warranty: 2 years on frame, one year parts.
Product Weight: Range from 14 to 16 pounds.
Color: 18 standard colors available.
