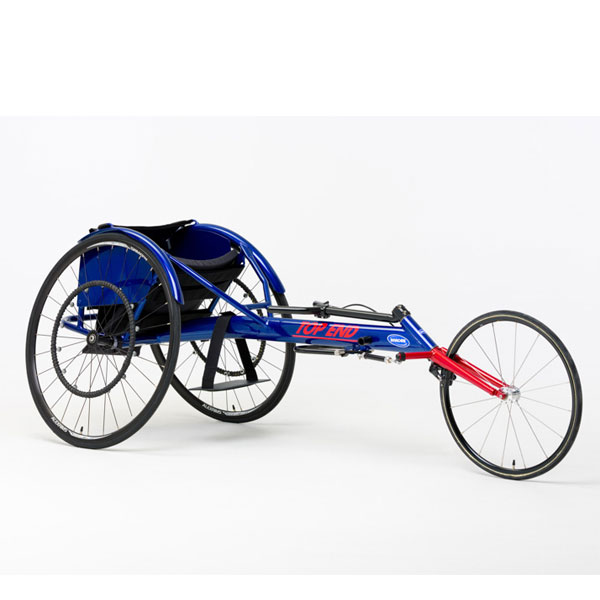

Invacare Top End Eliminator OSR - Open V Racing Wheelchair

Invacare Top End Eliminator OSR - Open V Racing Wheelchair
(2 reviews)

Price isn't all that matters when you are considering buying the Invacare Top End Eliminator OSR Standard, excellent customer service is priceless!


Top End has discovered that the best way to build racing wheelchairs is to focus on performance from the ground up, and the result is the Invacare Top End Eliminator OSR Standard. The OSR features an oversized raked fork and roll-formed horizontal maintube for maximum stiffness. Relaxed headtube angle provides exceptional stability and front cornering traction giving you the advantage in wheelchair racing.

The top mounted precision track compensator system and adjustable handlebar bar-ends of these racing wheelchairs ensure maximum speed on the road and around each turn of the track.

Same great custom 6061-T6 aluminum wheelchair racing frame with integral wrap-around fenders, aluminum side panels, 700c high performance rear wheels and 20” front wheel. Tire coated pushrims.



  • Custom 6061 T6 aluminum frame available in standard or kneel-only frame styles with 4 cage choices: U, V, Open V or I cage with 18 powder coat paint colors to choose from.
  • Aluminum side panels, straight axle tube with rear wheel alignment, aluminum fork and Aero bars equipped with caliper hand brake.
  • Integral wrap-around fenders.
  • Kneeling, amputee or traditional adjustable upholstery, 700C high performance clincher or tubular wheels/tires with 1/2" threaded axles.
  • Precision track compensator system, 20 inch front wheel with tubular tire, tire coated aluminum pushrims. See order form for options.

*** Top End charges a 10% surcharge on all of their products, which will be added to the total of your order after checkout. ***
Product details
Click here to be notified of price drops of this item
Top End Surcharge (Must Read Learn More)
Learn more
Frame/Cage Style
Learn more
Seat Type
Learn more
Camber Tube Option
Learn more
Upper Frame Width
Learn more
Lower Frame Width
Learn more
Axle Position
Learn more
Overall Length
Learn more
Cage Depth
Learn more
V Depth
Learn more
Front Seat Height
Learn more
Rear Seat Height
Learn more
Steering Handle
Learn more
Track Control
Learn more
Track Control Mount
Learn more
Camber Angle
Learn more
Front Wheel
Rear Wheel
Learn more
Front Tire Options
Rear Tire Options
Push Rim Rubber Tubing Coated Aluminum 3/8"
Learn more
Upholstery Material/Color
Seat Upholstery
Back Upholstery
Seat Cushion
30018 - 2" Soft Seat Cushion( +$42.77)
Safety Options
25015 - Safety Light, Front (White)( +$16.38)
25016 - Safety Light, Rear (Red)( +$16.38)
25073 - Safety Flag( +$54.60)
Positioning Options
60014 - Clamp-on Footrest, Adjustable( +$273.91)
25001 - Click Strap set, 8" Small( +$81.90)
25002 - Click Strap set, 10" Medium( +$88.27)
25003 - Click Strap set, 12" Large( +$99.19)
Performance Enhancement Options
25024 - Cordless Computer( +$109.20)
Training Options
25076 - Garmin Computer/Hear Rate Monitor( +$547.82)
Frame Color (see Accessories Studio below)
Alternative Fork Color (see Accessories Studio below)

Click here to subscribe for 'Back-in-stock' notifications
Click here to be notified when this item is nearly out of stock
: *
: *
: *
Colours Hammer Court/Quad Rugby Wheelchair
Corima Rear 4-Spoke Racing Wheels 700c
Wheelchair Alignment Gauge
Knobby Tire Tube 25" x 2" (50-559) Schrader Valve
Wheelchair Tube 22 x 1 3/8 (37-501)
ROHO MOSAIC Wheelchair Cushion Cover
Colours Y-360 Mod Style Wheels with Inserts
Sure-Grip Park Brake Extension
Cran Magic - Dietary Supplement to Promote A Healthy Urinary Tract
Average customer rating:
(2 reviews)

2 Most useful customer reviews (see all reviews):
Apr 11, 2017
This customer purchased the item at our site.
Runs straight and very reliable.
Loading...Was the above review useful to you? Yes (0) / No (1)
wilson nyakoko
it has good and strong frame
Loading...Was the above review useful to you? Yes (0) / No (0)

Frame: Custom racing frame available in 2 frame choices: standard or kneel only. The Eliminator OSR is custom built to make the most of each athletes ability.
Frame Tubing: Frame is built of 6061 T6 oval aluminum tubing with rolled aluminum integral wrap-around fenders and full aluminum side panels. There are 4 different cage styles to maximize each athlete's style.
Seat Width: Upper inside frame width and lower inside frame width are needed to ensure a proper fit. Please refer to the measuring guidelines on the back of the order form or the racing CD for clarification.
Camber Angle: Axle position is typically between 5"-8". Camber of 11, 12, 13, and 15 degrees are available.
Seat Height: Rear seat height offered 15" 16", 17" or 18" from the floor. Front seat height is typically 1" higher on the standard OSR and on the kneel-only OSR seat angle is used instead to determine the front measurement. See the order form for more details.
Wheels: 700C or 26" rear clincher or tubular 28 spoke high performance wheels with threaded axles. Tire coated aluminum pushrims are standard. Composite wheels are available as an upgrade. Front wheel is 20" tubular.
Overall Length: 64" to 78". The aero steering bars are adjustable so that the user can easily reach the caliper brake.
Product Weight Capacity: 250 pounds.
Warranty: 2 years on frame, one year parts.
Product Weight: Range from 14 to 16 pounds.
Color: 18 standard colors available.
